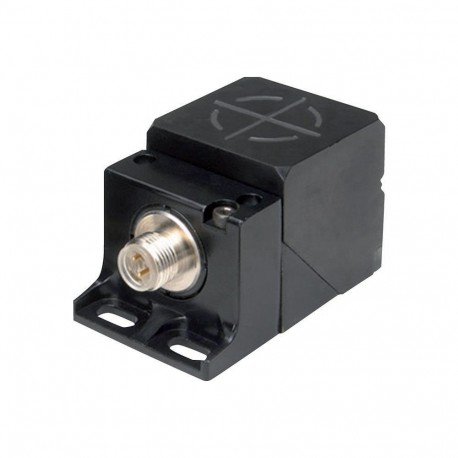

E52Q-DL30UAD01 135809 Y7-135809 EATON ELECTRIC Proximity switch, inductive, 1N/O+1N/C, Sn 30mm, 4L, 10-48VDC..
E52Q-DL30UAD01
135809
Y7-135809
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller E52Q-DL30UAD01 proximity switch, inductive, 1N/O+1N/C, Sn 30mm, 4L, 10-48VDC.. is a cuboid inductive proximity switch built for heavy-duty automation and material handling tasks. Industrial control circuits use these units to reliably sense metal objects at a distance, ensuring synchronized operation across conveyor and transfer systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 40 mm
- Height of sensor (EF007283): 40 mm
- Length of sensor (EF007334): 40 mm
- Diameter sensor (EF007111): 0 mm
- Mechanical mounting condition for sensor (EF004041): Not flat
- Switching distance (EF003647): 30 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Anticoincidence
- Type of switching output (EF003962): NPN
- Type of electric connection (EF003961): Plug-in connection
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cuboid
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
CSA File No.: UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN 60947-5-2
CE
UL File No.: E166051
CSA-C22.2 No. 14
UL 508
UL
Product specifications
Protection against wire breakage
Short-circuit protection
4-wire
NEMA 4X, 6, 13
Status indication of Switching state: Red LED
