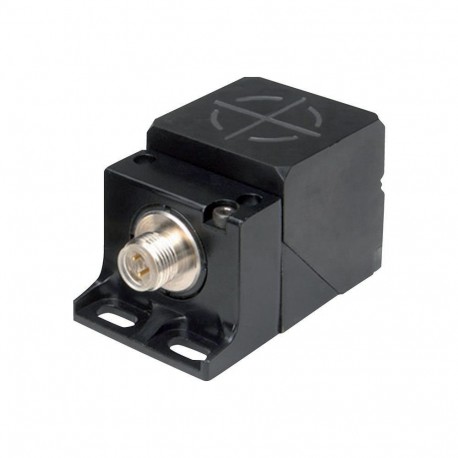

EATON - MOELLER E52Q-DL25UAD01 E52Q-DL25UAD01 135808 Y7-135808 EATON ELECTRIC Proximity switch, inductive, 1N/O+1N/C, Sn 25mm, 4L, 10-48VDC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E52Q-DL25UAD01 135808 Y7-135808 EATON ELECTRIC Proximity switch, inductive, 1N/O+1N/C, Sn 25mm, 4L, 10-48VDC..

E52Q-DL25UAD01

135808

Y7-135808

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O+1N/C, Sn=25mm, 4L, 10-48VDC, NPN, PNP, quad.40, insulated material E52Q-DL25UAD01 Eaton Moeller® series E52 Proximity switch, inductive, 1N/O+1N/C, Sn=25mm, 4L, 10-48VDC, NPN, PNP, quad.40, insulated material Proximity switch, Inductive Sensors, Product range: E52 Cube Series, Description: Housing adapter, Connection: 4-wire, Design (outer dimensions): 40 x 40 x 40 mm, Rated operational voltage: Ue= 10 – 48 V DC, Rated switching distance: Sn= 25 mm, Type of mounting: Non-flush, Switching type: NPN, PNP, Plug-in connection M12 x 1, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Material: Zinc/Insulated material, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton E52 inductive proximity sensor
Catalog Number
135808
Model Code
E52Q-DL25UAD01
EAN
4015081326013
Product Length/Depth
41.28 mm
Product Height
79.38 mm
Product Width
44.45 mm
Product Weight
0.27 kg
Certifications
Certified by UL for use in Canada
CSA-C22.2 No. 14
UL File No.: E166051
CE
CSA File No.: UL report applies to both US and Canada
UL Category Control No.: NRKH, NRKH7
UL
UL 508
IEC/EN 60947-5-2
Catalog Notes
Housing adapter

Product specifications

Type
Inductive sensor
Electric connection type
Connector M12
Enclosure material finishing
Other
Surface finishing
Zinc alloy
Actuation type
Metallic Target
Enclosure material
Plastic
Enclosure type
Cuboid
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Diameter sensor
0 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
25 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Functions
Protection against wire breakage
Protection against polarity reversal
Short-circuit protection
Voltage type
DC
Mounting method
Non-flush mounting
Material
Zinc (Insulated)
Connection type
Plug-in connection M12 x 1
4-wire
Installation type
Not flat
Degree of protection
IP67
NEMA 4X, 6, 13
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Status indication of Operating voltage: Green LED
Switch function type
Anticoincidence
Load current
Max. 300 mA (Ie)
Residual current
0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
100 Hz
Voltage rating - max
48 V
Width sensor
40 mm
Product category
E52 Cube Series
Switching output type
NPN
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
48 V
Rated control supply voltage (Us) at DC - min
6 V
Rated switching distance (Sn) - max
25 mm
Repeatability
2 %
Sensor height
40 mm
Sensor length
40 mm
Supply voltage - max
48 V
Supply voltage - min
6 V
Switching hysteresis of Sn
15 %
Voltage drop (Ud)
2.5 V

ETIM for 135808 Sensors (EC002714)
Feature Name Feature Value
Width sensor (EF007094) 40 mm
Height of sensor (EF007283) 40 mm
Length of sensor (EF007334) 40 mm
Diameter sensor (EF007111) 0 mm
Mechanical mounting condition for sensor (EF004041) Not flat
Switching distance (EF003647) 25 mm
Suitable for safety functions (EF001597) No
Type of switch function (EF003963) Anticoincidence
Type of switching output (EF003962) NPN
Type of electric connection (EF003961) Connector M12
Number of semiconductor outputs with signalling function (EF003945) 1
Number of contact energized outputs with signalling function (EF003946) 0
Number of protected semiconductor outputs (EF003951) 0
Number of protected contact energized outputs (EF003952) 0
Type of actuation (EF006949) Metallic Target
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cuboid
Coating housing (EF001601) Other
Cascadable (EF000507) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Max. output current at protected output (EF004035) 0 mA
Supply voltage (EF004127) 6 V
Rated control supply voltage AC 50 Hz (EF003978) 0 V
Rated control supply voltage AC 60 Hz (EF003979) 0 V
Rated control supply voltage DC (EF003980) 6 V
Voltage type (EF000187) DC
Switching frequency (EF003587) 100 Hz
With monitoring function downstream switching devices (EF004052) No
Housing material (EF001596) Plastic
Compression-resistant (EF007106) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Degree of protection (NEMA) (EF011959) 4X, 6, 13
