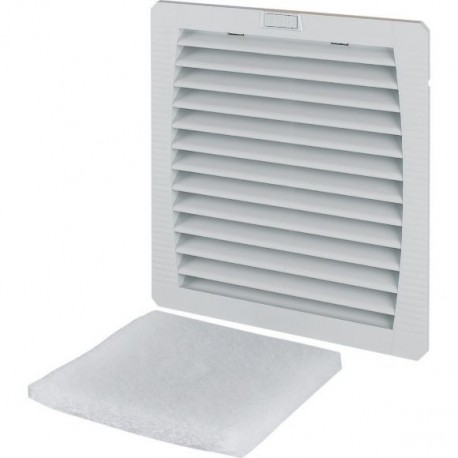

EATON - MOELLER E-FAN5 E-FAN5 167291 Y7-167291 EATON ELECTRIC Filter fans View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E-FAN5 167291 Y7-167291 EATON ELECTRIC Filter fans

E-FAN5

167291

Y7-167291

EATON - MOELLER

1 Pcs.

Filter fans E-FAN5 Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure. Filter fans, 5 Filter fan for system ventilation; easy installation; filter pads can be easily changed; degree of protection IP54; airflow direction can be easily changed; plain bearing; UL94 V-0 self-extinguishing plastic; fuse with 6 A; air delivery rate, free-blowing 256/292 m³/h; cutout [HxW] 223mm x 223mm; dimensions 252mm x 252mm

Automation > Ventilator (switchgear cabinet)
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller filter fan model E-FAN5 supplies active thermal cooling and particulate filtration for electrical enclosures. Panel filter fans protect automation components by expelling internal heat while maintaining barrier protection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of fans (EF000928): 1
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Suitable for wall built-in (EF007536): Yes
  • Built as slide-in ventilator (EF007126): No
  • Air circulator (EF007516): Yes
  • Roof ventilator (EF007099): No
  • With filter (EF006013): Yes
  • With protective cover (EF005500): No
  • Volume flow, freeblowing (EF007173): 292 m³/h
  • Rated power (EF007051): 45 W
  • EMC-version (EF001062): No
  • Noise emission (EF007829): 42 dB(A)
  • Degree of protection (IP) (EF005474): IP54

More info

▲

General specifications

Product Name
Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure
Catalog Number
167291
Model Code
E-FAN5
EAN
4015081637942
Product Length/Depth
113 mm
Product Height
252 mm
Product Width
252 mm
Product Weight
1.85 kg
Compliances
RoHS conform

Delivery programme

Color
Gray

Technical data - electrical

Voltage type
AC
Voltage rating at AC 50 Hz - min
230 V
Voltage rating at AC 50 Hz - max
240 V
Voltage rating at AC 60 Hz - min
230 V
Voltage rating at AC 60 Hz - max
240 V
Voltage rating at DC - min
0 V
Voltage rating at DC - max
0 V
Rated power
45 W

Technical data - mechanical

Mounting method
Snap mounting
Degree of protection
IP54
12 (NEMA)
Number of fans
1

Additional information

Features
Wall build in
Fitted with:
Filter
Functions
Air circulator
Noise emission
42 dBA
RAL-number
7035
Suitable for
19 inch rack mounting
Volume flow (freeblowing)
292 m³/h
