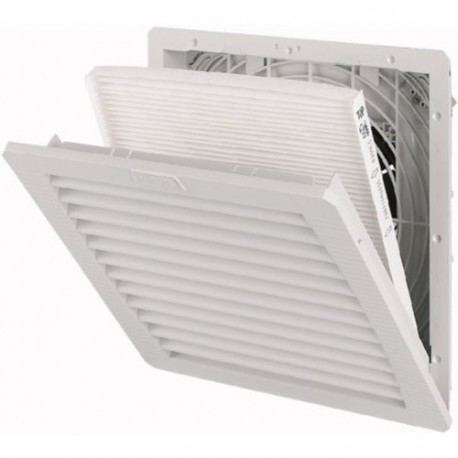

EATON - MOELLER E-FAN4-55 E-FAN4-55 167298 Y7-167298 EATON ELECTRIC Filter fans View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E-FAN4-55 167298 Y7-167298 EATON ELECTRIC Filter fans

E-FAN4-55

167298

Y7-167298

EATON - MOELLER

1 Pcs.

Filter fans E-FAN4-55 Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure. Filter fans, 4-55 Filter fan for system ventilation; easy installation; filter pads can be easily changed; degree of protection IP55.; airflow direction can be easily changed; plain bearing; UL94 V-0 self-extinguishing plastic; fuse with 6 A; air delivery rate, free-blowing 145/160 m³/h; cutout [HxW] 223mm x 223mm; dimensions 252mm x 252mm; UV resistant

Automation > Ventilator (switchgear cabinet)
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller E-FAN4-55 167298 Y7-167298 EATON ELECTRIC Filter fans is an industrial filter fan unit utilized for forced convection cooling in electrical enclosures and automation control boxes. These units ensure that internal heat loads are reliably transferred to the external environment while keeping particulate contaminants out. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of fans (EF000928): 1
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Suitable for wall built-in (EF007536): Yes
  • Built as slide-in ventilator (EF007126): No
  • Air circulator (EF007516): Yes
  • Roof ventilator (EF007099): No
  • With filter (EF006013): Yes
  • With protective cover (EF005500): No
  • Volume flow, freeblowing (EF007173): 160 m³/h
  • Rated power (EF007051): 18 W
  • EMC-version (EF001062): No
  • Noise emission (EF007829): 40 dB(A)
  • Degree of protection (IP) (EF005474): IP55

More info

▲

General specifications

Product Name
Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure
Catalog Number
167298
Model Code
E-FAN4-55
EAN
4015081638000
Product Length/Depth
97 mm
Product Height
252 mm
Product Width
252 mm
Product Weight
1.36 kg
Compliances
RoHS conform

Delivery programme

Color
Gray

Technical data - electrical

Voltage type
AC
Voltage rating at AC 50 Hz - min
230 V
Voltage rating at AC 50 Hz - max
240 V
Voltage rating at AC 60 Hz - min
230 V
Voltage rating at AC 60 Hz - max
240 V
Voltage rating at DC - min
0 V
Voltage rating at DC - max
0 V
Rated power
18 W

Technical data - mechanical

Mounting method
Snap mounting
Degree of protection
12 (NEMA)
IP55
Number of fans
1

Additional information

Features
Wall build in
Fitted with:
Filter
Functions
Air circulator
Noise emission
40 dBA
RAL-number
7035
Suitable for
19 inch rack mounting
Volume flow (freeblowing)
160 m³/h
