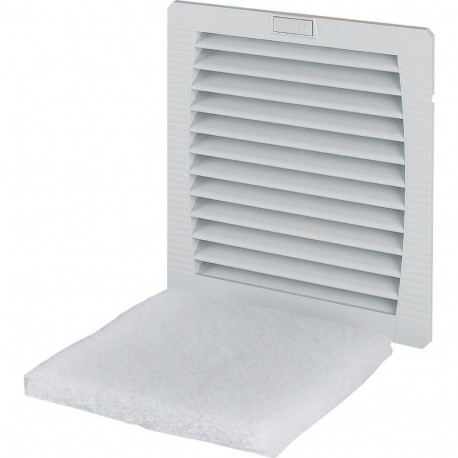

EATON - MOELLER E-FAN3 E-FAN3 167289 Y7-167289 EATON ELECTRIC Filter fans View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E-FAN3 167289 Y7-167289 EATON ELECTRIC Filter fans

E-FAN3

167289

Y7-167289

EATON - MOELLER

1 Pcs.

Filter fans E-FAN3 Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure. Filter fans, 3 Filter fan for system ventilation; easy installation; filter pads can be easily changed; degree of protection IP54; airflow direction can be easily changed; plain bearing; UL94 V-0 self-extinguishing plastic; fuse with 6 A; air delivery rate, free-blowing 110/125 m³/h; cutout [HxW] 177mm x 177mm; dimensions 202mm x 202mm

Automation > Ventilator (switchgear cabinet)
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller E-FAN3 filter fan provides reliable cooling and air filtration for electrical control panels and distribution boards. Panel builders use forced ventilation units to maintain proper thermal management across dense modular component layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of fans (EF000928): 1
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Suitable for wall built-in (EF007536): Yes
  • Built as slide-in ventilator (EF007126): No
  • Air circulator (EF007516): Yes
  • Roof ventilator (EF007099): No
  • With filter (EF006013): Yes
  • With protective cover (EF005500): No
  • Volume flow, freeblowing (EF007173): 125 m³/h
  • Rated power (EF007051): 19 W
  • EMC-version (EF001062): No
  • Noise emission (EF007829): 40 dB(A)
  • Degree of protection (IP) (EF005474): IP54

More info

▲

General specifications

Product Name
Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure
Catalog Number
167289
Model Code
E-FAN3
EAN
4015081637928
Product Length/Depth
87 mm
Product Height
202 mm
Product Width
202 mm
Product Weight
1.02 kg
Compliances
RoHS conform

Delivery programme

Color
Gray

Technical data - electrical

Voltage type
AC
Voltage rating at AC 50 Hz - min
230 V
Voltage rating at AC 50 Hz - max
240 V
Voltage rating at AC 60 Hz - min
230 V
Voltage rating at AC 60 Hz - max
240 V
Voltage rating at DC - min
0 V
Voltage rating at DC - max
0 V
Rated power
19 W

Technical data - mechanical

Mounting method
Snap mounting
Degree of protection
IP54
12 (NEMA)
Number of fans
1

Additional information

Features
Wall build in
Fitted with:
Filter
Functions
Air circulator
Noise emission
40 dBA
RAL-number
7035
Suitable for
19 inch rack mounting
Volume flow (freeblowing)
125 m³/h
