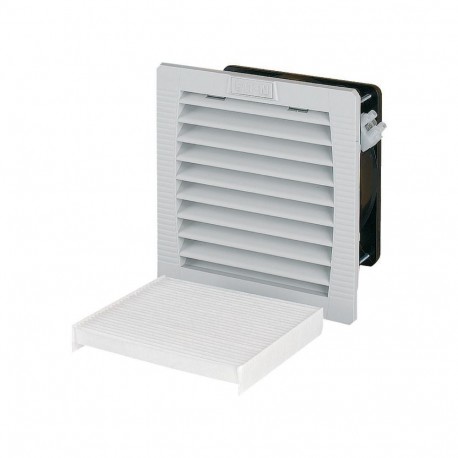

EATON - MOELLER E-FAN2-55 E-FAN2-55 167296 Y7-167296 EATON ELECTRIC Filter fans View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E-FAN2-55 167296 Y7-167296 EATON ELECTRIC Filter fans

E-FAN2-55

167296

Y7-167296

EATON - MOELLER

1 Pcs.

Filter fans E-FAN2-55 Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure. Filter fans, 2-55 Filter fan for system ventilation; easy installation; filter pads can be easily changed; degree of protection IP55.; airflow direction can be easily changed; plain bearing; UL94 V-0 self-extinguishing plastic; fuse with 6 A; air delivery rate, free-blowing 56/64 m³/h; cutout [HxW] 125mm x 125mm; dimensions 145mm x 145mm; UV resistant

Automation > Ventilator (switchgear cabinet)
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number E-FAN2-55 is a filter fan designed for active thermal management within electrical enclosures and industrial control panels. It maintains safe operating temperatures by forcing filtered air circulation across sensitive internal components, helping prevent heat-related failures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of fans (EF000928): 1
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Suitable for wall built-in (EF007536): Yes
  • Built as slide-in ventilator (EF007126): No
  • Air circulator (EF007516): Yes
  • Roof ventilator (EF007099): No
  • With filter (EF006013): Yes
  • With protective cover (EF005500): No
  • Volume flow, freeblowing (EF007173): 64 m³/h
  • Rated power (EF007051): 19 W
  • EMC-version (EF001062): No
  • Noise emission (EF007829): 44 dB(A)
  • Degree of protection (IP) (EF005474): IP55

More info

▲

General specifications

Product Name
Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure
Catalog Number
167296
Model Code
E-FAN2-55
EAN
4015081637980
Product Length/Depth
70 mm
Product Height
145 mm
Product Width
145 mm
Product Weight
0.76 kg
Compliances
RoHS conform

Delivery programme

Color
Gray

Technical data - electrical

Voltage type
AC
Voltage rating at AC 50 Hz - min
230 V
Voltage rating at AC 50 Hz - max
240 V
Voltage rating at AC 60 Hz - min
230 V
Voltage rating at AC 60 Hz - max
240 V
Voltage rating at DC - min
0 V
Voltage rating at DC - max
0 V
Rated power
19 W

Technical data - mechanical

Mounting method
Snap mounting
Degree of protection
12 (NEMA)
IP55
Number of fans
1

Additional information

Features
Wall build in
Fitted with:
Filter
Functions
Air circulator
Noise emission
44 dBA
RAL-number
7035
Suitable for
19 inch rack mounting
Volume flow (freeblowing)
64 m³/h
