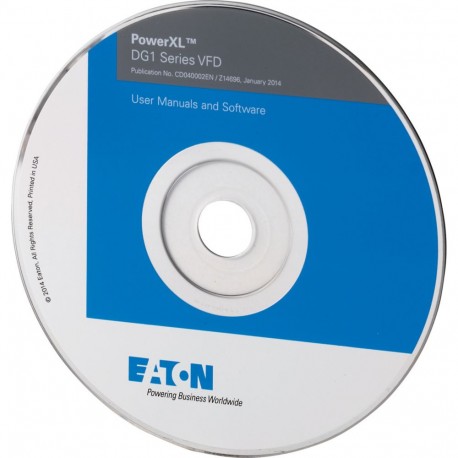

EATON - MOELLER DXG-ACC-SOFTWARE DXG-ACC-SOFTWARE 730-32036-00P Y7-730-32036-00P EATON ELECTRIC Software kit for DG1 variable frequency drive.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DXG-ACC-SOFTWARE 730-32036-00P Y7-730-32036-00P EATON ELECTRIC Software kit for DG1 variable frequency drive..

DXG-ACC-SOFTWARE

7303203600P

Y7-730-32036-00P

EATON - MOELLER

1 Pcs.

Software kit for DG1 variable frequency drives, including operator manual and connection cable DXG-ACC-SOFTWARE Parameter software, Subrange: parameter software, For use with: DG1

Automation > Accessories/spare parts for frequency controller
Power XL Frequency Converters

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton DXG Parameter software
Catalog Number
730-32036-00P
Model Code
DXG-ACC-SOFTWARE
EAN
4015081721696
Product Length/Depth
55 mm
Product Height
165 mm
Product Width
135 mm
Product Weight
0.242 kg
Compliances
CE

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Software tool

ETIM for 730-32036-00P Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Software tool
Accessory (EF013236) Yes
Spare part (EF013237) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
