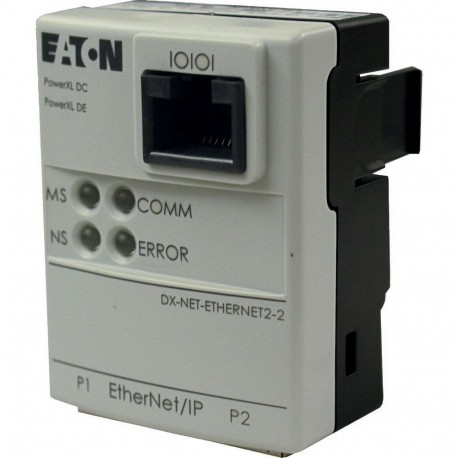

EATON - MOELLER DX-NET-ETHERNET2-2 DX-NET-ETHERNET2-2 184969 Y7-184969 EATON ELECTRIC Field bus connection Ethernet/IP for DE1, DC1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DX-NET-ETHERNET2-2 184969 Y7-184969 EATON ELECTRIC Field bus connection Ethernet/IP for DE1, DC1

DX-NET-ETHERNET2-2

184969

Y7-184969

EATON - MOELLER

1 Pcs.

Field bus connection Ethernet/IP for DE1, DC1 DX-NET-ETHERNET2-2 Field bus module, Bus protocol: EtherNet-IP, Description: 2 x RJ45, 8 pole, For use with: DE1, DC1, Connection technique: Plug-in module

Automation > Accessories/spare parts for frequency controller
Power XL Frequency Converters

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton DX Communication module
Catalog Number
184969
Model Code
DX-NET-ETHERNET2-2
EAN
4015081803903
Product Length/Depth
41 mm
Product Height
57 mm
Product Width
43 mm
Product Weight
0.044 kg
Compliances
CE
Catalog Notes
2 x RJ45, 8 pole

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DC1
DE1
Accessory/spare part type
Communication module
Connection type
Plug-in connection
Protocol
EtherNet-IP

ETIM for 184969 Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Communication module
Accessory (EF013236) Yes
Spare part (EF013237) No
