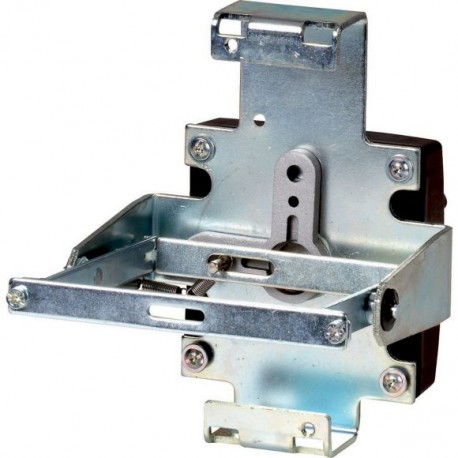

EATON - MOELLER NZM2-XRAV NZM2-XRAV 107247 Y7-107247 EATON ELECTRIC Drive, on rear, 3p, lockable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM2-XRAV 107247 Y7-107247 EATON ELECTRIC Drive, on rear, 3p, lockable

NZM2-XRAV

107247

Y7-107247

EATON - MOELLER

1 Pcs.

Drive, on rear, 3p, lockable NZM2-XRAV Eaton Moeller series NZM - Molded Case Circuit Breaker. Drive, on rear, 3p, lockable, 2 Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide application. Functional groups make mounting flexible and simple. Note: for direct, connection on rear of the switch to the side of the control panel or control panel door. Switch actuation on rear through side plate or control panel door. For switch with toggle lever. For enhanced protection against direct contact on the incomer side, IP2X protection against contact with a finger can be ordered. Default, black/grey. Lockable on the 0 position on the handle on the switch using up to 3 padlocks . Can be used for: NZM2, N2, NS2, PN2

Automation > Handle for power circuit breaker
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller series NZM operating element accessory
Catalog Number
107247
Model Code
NZM2-XRAV
EAN
4015081070206
Product Length/Depth
184 mm
Product Height
165 mm
Product Width
136 mm
Product Weight
0.94 kg
Compliances
IEC
UL/CSA
RoHS conform
Certifications
CSA (File No. 22086)
UL listed
UL (File No. E140305)
CE marking
UL489
IEC60947
CSA-C22.2 No. 5-09
CSA certified
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)

Product specifications

Type
AccessoryOn rear drive
Special features
For direct rear connection of the switch to the side of the control panel or control panel door.Switch actuation on rear through side plate or control panel door.For switch with toggle lever
Features
Lockable
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Black
Fitted with:
Padlock
Frame
NZM2
Used with
NZM2, N2, NS2, PN2
Suitable for
Power circuit breaker
Switch disconnector
Locking facility
Lockable on the 0 position on the handle using up to 3 padlocks
Degree of protection / NEMA enclosure type
IP66
4X. 12

ETIM for 107247 Low-voltage industrial controls and switchgear (EC000229)
Feature Name Feature Value
With restart blockage (EF004054) No
With key lock (EF026057) No
Padlock locking (EF001163) Yes
Colour (EF000007) Black
Suitable for emergency stop (EF001433) No
With extension shaft (EF001434) No
Suitable for power circuit breaker (EF005863) Yes
Suitable for switch disconnector (EF007252) Yes
Degree of protection (NEMA) (EF011959) 4X, 12
