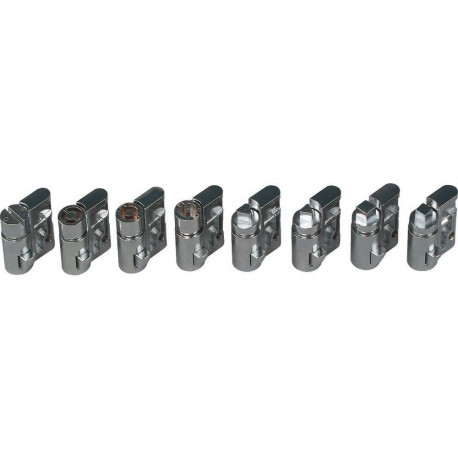

EATON - MOELLER NWS-SHE/DLB/DN3 NWS-SHE/DLB/DN3 255309 Y7-255309 EATON ELECTRIC Double-bit closing insert, mandrel 3mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NWS-SHE/DLB/DN3 255309 Y7-255309 EATON ELECTRIC Double-bit closing insert, mandrel 3mm

NWS-SHE/DLB/DN3

255309

Y7-255309

EATON - MOELLER

1 Pcs.

Double-bit closing insert, mandrel 3mm NWS-SHE/DLB/DN3 Eaton Distribution parts. Double-bit closing insert, mandrel 3mm

Automation > Lock system for switchgear cabinet systems
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller NWS-SHE/DLB/DN3 is a double-bit closing insert designed to fit industrial enclosure locking mechanisms and service panels. Facility operators deploy these standardized tool-operated inserts across utility and automation systems to allow rapid yet controlled access for qualified technicians.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Toggle (EF001164): No
  • Padlock locking (EF001163): No
  • Espagnolette locking (3-point locking) (EF009216): Yes
  • Type of closure (EF004462): Double bit

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
255309
Model Code
NWS-SHE/DLB/DN3
EAN
4015082553098
Product Length/Depth
40 mm
Product Height
33 mm
Product Width
17 mm
Product Weight
0.076 kg
Compliances
RoHS conform

Product specifications

Type
General switchboard accessory
Closure type
Double bit
Fitted with:
3 mm double ward key
Accessories
Closing and locking systems
Handle type
Other
Functions
Espagnolette locking (3-point locking)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
