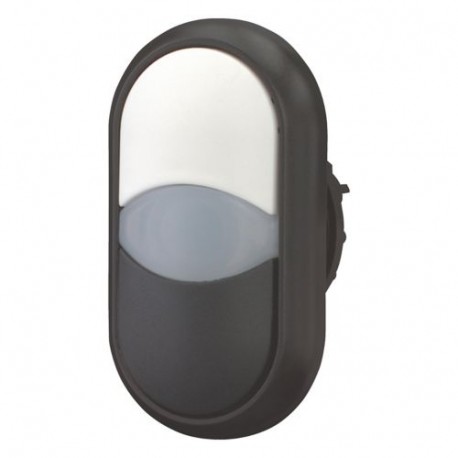

EATON - MOELLER M22S-DDL-WS M22S-DDL-WS 216705 Y7-216705 EATON ELECTRIC Double actuator pushbutton, +indicator light, white/white/black View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DDL-WS 216705 Y7-216705 EATON ELECTRIC Double actuator pushbutton, +indicator light, white/white/black

M22S-DDL-WS

216705

Y7-216705

EATON - MOELLER

1 Pcs.

Double actuator pushbutton, +indicator light, white/white/black M22S-DDL-WS Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, White lens, white, black, Blank, Bezel: black Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights non-flush, momentary, Description: White lens, button plate: white, black, Button plate Blank, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-DDL-WS 216705 Y7-216705 EATON ELECTRIC Double actuator pushbutton, +indicator light, white/white/black functions as a multi-purpose control device for complex industrial automation panels. Double actuator pushbuttons allow operators to control multiple distinct machine functions while integrating status indication into a single compact footprint.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black and white
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
216705
Model Code
M22S-DDL-WS
EAN
4015082167059
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CSA Class No.: 3211-03
VDE 0660
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
CSA
UL File No.: E29184
UL
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
