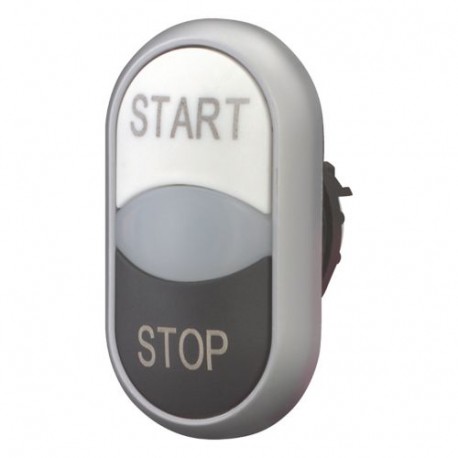

EATON - MOELLER M22-DDL-WS-GB1/GB0 M22-DDL-WS-GB1/GB0 216708 Y7-216708 EATON ELECTRIC Double actuator pushbutton, +indicator light, white START.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DDL-WS-GB1/GB0 216708 Y7-216708 EATON ELECTRIC Double actuator pushbutton, +indicator light, white START..

M22-DDL-WS-GB1/GB0

216708

Y7-216708

EATON - MOELLER

5 Pcs.

Double actuator pushbutton, +indicator light, white START/white/black STOP M22-DDL-WS-GB1/GB0 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, White lens, white, black, inscribed, Bezel: titanium, START/STOP Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights non-flush, momentary, Description: White lens, button plate: white, black, Button plate inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller M22-DDL-WS-GB1/GB0 double actuator pushbutton serves as a dual-function control interface on industrial control panels, enabling operators to manage motor start and stop sequences within automated machinery. Such compact operator units maximize panel efficiency by combining multiple command positions into a single mounting cutout. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black and white
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
216708
Model Code
M22-DDL-WS-GB1/GB0
EAN
4015082167080
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
IEC/EN 60947
UL Category Control No.: NKCR
CSA File No.: 012528
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL File No.: E29184
CE
CSA-C22.2 No. 94-91
UL 508
VDE 0660
UL
DNV
GL
LR
