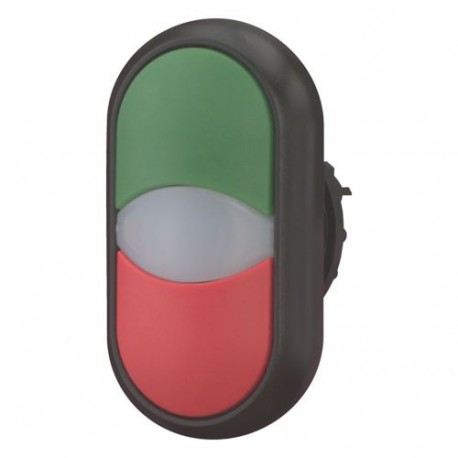

M22S-DDL-GR 216699 Y7-216699 EATON ELECTRIC Double actuator pushbutton, +indicator light, green/white/red
M22S-DDL-GR
216699
Y7-216699
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Double actuator pushbutton with integrated indicator light, produced by Eaton Moeller under part number M22S-DDL-GR. Multi-function pushbuttons integrate start and stop operations into a single space-saving enclosure cutout, commonly utilized on machinery control desks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red/green
- Number of command positions (EF001372): 2
- Construction type lens (EF006253): Oval
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
More info
▲General specifications
CE Marked
Bureau Veritas
CSA Certified
Lloyd's Register Certified
CE
IEC/EN 60947
UL 508
UL Category Control No.: NKCR
CSA
VDE 0660
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA File No.: 012528
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
DNV
GL
LR
Features & Functions
Classical
General
NEMA 13
IP66
NEMA 3R
NEMA 12
IP66
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Spring-return
