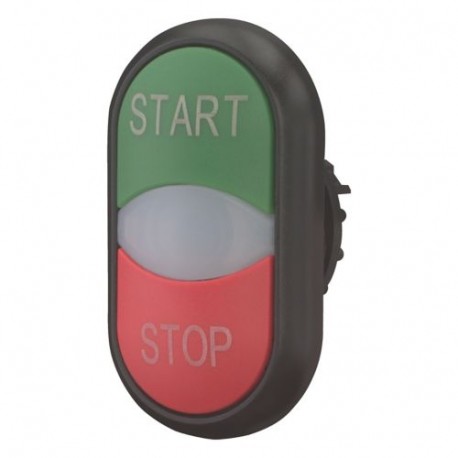

EATON - MOELLER M22S-DDL-GR-GB1/GB0 M22S-DDL-GR-GB1/GB0 216703 Y7-216703 EATON ELECTRIC Double actuator pushbutton, +indicator light, green STAR.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DDL-GR-GB1/GB0 216703 Y7-216703 EATON ELECTRIC Double actuator pushbutton, +indicator light, green STAR..

M22S-DDL-GR-GB1/GB0

216703

Y7-216703

EATON - MOELLER

5 Pcs.

Double actuator pushbutton, +indicator light, green START/white/red STOP M22S-DDL-GR-GB1/GB0 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, White lens, green, red, inscribed, Bezel: black, START/STOP Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights non-flush, momentary, Description: White lens, button plate: green, red, Button plate inscribed, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller double actuator pushbutton, +indicator light, green star.. (part number M22S-DDL-GR-GB1/GB0) integrates multiple control pushbuttons and an integrated pilot light into a compact multi-function assembly. These units are widely applied on motor starter panels and complex machinery where space-saving operator interfaces are critical.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red/green
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
216703
Model Code
M22S-DDL-GR-GB1/GB0
EAN
4015082167035
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
UL Category Control No.: NKCR
UL 508
VDE 0660
UL
CSA-C22.2 No. 14-05
CSA
CSA-C22.2 No. 94-91
CE
IEC/EN 60947-5
CSA File No.: 012528
IEC/EN 60947
UL File No.: E29184
CSA Class No.: 3211-03
DNV
GL
LR
