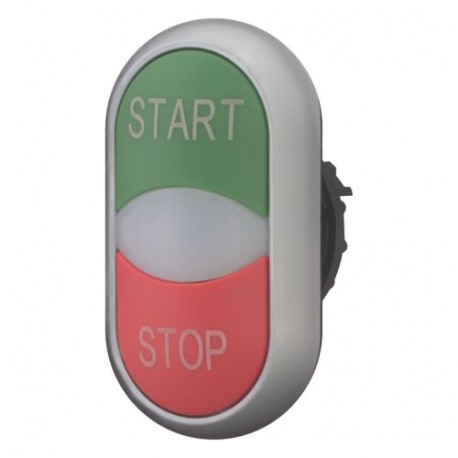

EATON - MOELLER M22-DDL-GR-GB1/GB0 M22-DDL-GR-GB1/GB0 216702 Y7-216702 EATON ELECTRIC Double actuator pushbutton, +indicator light, green START.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DDL-GR-GB1/GB0 216702 Y7-216702 EATON ELECTRIC Double actuator pushbutton, +indicator light, green START..

M22-DDL-GR-GB1/GB0

216702

Y7-216702

EATON - MOELLER

5 Pcs.

Double actuator pushbutton, +indicator light, green START/white/red STOP M22-DDL-GR-GB1/GB0 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, White lens, green, red, inscribed, Bezel: titanium, START/STOP Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights non-flush, momentary, Description: White lens, button plate: green, red, Button plate inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22-DDL-GR-GB1/GB0 Eaton Moeller double actuator pushbutton is an operator control device used in industrial control panels to initiate start and stop commands or change operating states. These components provide an ergonomic interface for machine operators to interact securely with automation systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red/green
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
216702
Model Code
M22-DDL-GR-GB1/GB0
EAN
4015082167028
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CSA-C22.2 No. 94-91
IEC/EN 60947
UL File No.: E29184
UL Category Control No.: NKCR
CSA
UL 508
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL
CE
CSA Class No.: 3211-03
IEC/EN 60947-5
VDE 0660
DNV
GL
LR
