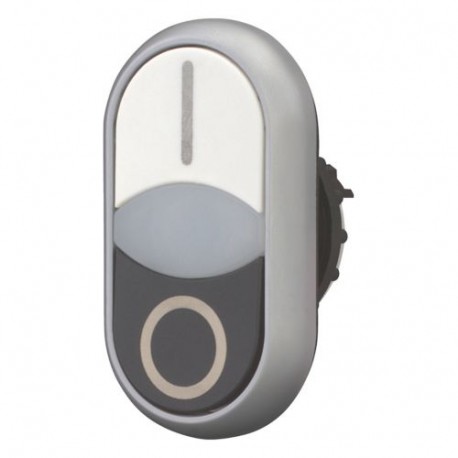

Double actuator pushbutton, +indicator light, flush, white I, white, black 0 M22-DDLF-WS-X1/X0 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights flush, momentary, White lens, white, black, inscribed, Bezel: titanium Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights flush, momentary, Description: White lens, button plate: white, black, Button plate inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A double actuator pushbutton, +indicator light, flush, white.. functions as a dual-operator control unit, housing two distinct push surfaces and an integrated light in a single panel cutout. This configuration allows technicians to save space while managing dual operational commands such as start and stop sequences on electrical control boards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black and white
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
284816
Model Code
M22-DDLF-WS-X1/X0
EAN
4015082848163
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947
CE
VDE 0660
CSA-C22.2 No. 14-05
IEC/EN 60947-5
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
