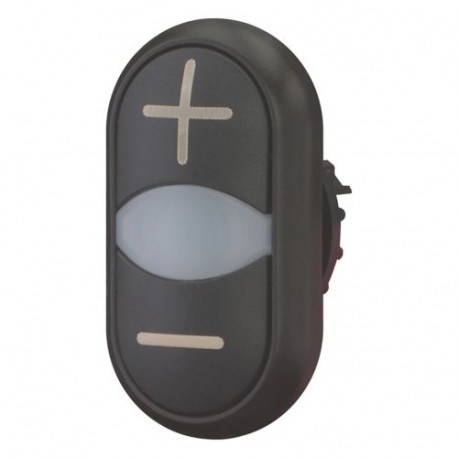

EATON - MOELLER M22S-DDL-S-X4/X5 M22S-DDL-S-X4/X5 218146 Y7-218146 EATON ELECTRIC Double actuator pushbutton + indicator light, black +/white.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DDL-S-X4/X5 218146 Y7-218146 EATON ELECTRIC Double actuator pushbutton + indicator light, black +/white..

M22S-DDL-S-X4/X5

218146

Y7-218146

EATON - MOELLER

5 Pcs.

Double actuator pushbutton + indicator light, black +/white/black - M22S-DDL-S-X4/X5 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, White lens, black, black, inscribed, Bezel: black Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights non-flush, momentary, Description: White lens, button plate: black, black, Button plate inscribed, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Electric double actuator pushbutton + indicator light, black +/white (M22S-DDL-S-X4/X5) integrates multiple command points and visual status indication within a streamlined housing for industrial control panels. These dual-function components optimize panel space while enabling precise operator control over complex automation tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
218146
Model Code
M22S-DDL-S-X4/X5
EAN
4015082181468
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
UL Category Control No.: NKCR
CSA Class No.: 3211-03
VDE 0660
CSA File No.: 012528
UL File No.: E29184
IEC/EN 60947-5
CE
CSA-C22.2 No. 94-91
UL
UL 508
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
