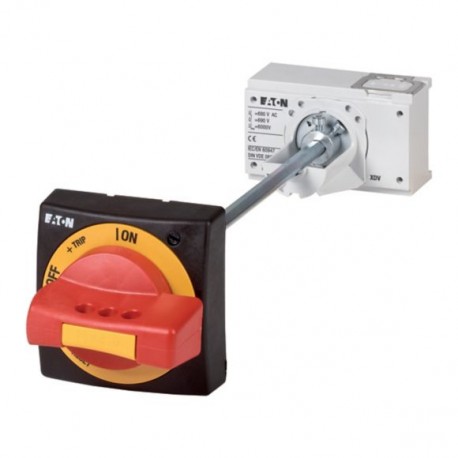

NZM2-XTVDVR-NA 271450 Y7-271450 EATON ELECTRIC Door coupling rotary handle red-yellow, size 2, NA type
NZM2-XTVDVR-NA
271450
Y7-271450
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZM2-XTVDVR-NA is a high-visibility red-yellow door coupling rotary handle engineered for emergency disconnect and safety switching applications. Maintenance teams install these lockable operators on circuit breaker enclosures to ensure rapid visual identification and compliance with safety codes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: NZM2-XTVDVR-NA
- Catalogue code: 271450
- Catalogue title: NZM2-XTVDVR-NA 271450 Y7-271450 EATON ELECTRIC Door coupling rotary handle red-yellow, size 2, NA type
- Product description: General specifications Product Name Eaton Moeller series NZM operating element NA Catalog Number 271450 Model Code NZM2-XTVDVR-NA EAN 4015082714505 Product Length/Depth 100 mm Product Height 190 mm Product Width 110 mm P
- Manufacturer summary: Door coupling rotary handle red-yellow, size 2, NA type NZM2-XTVDVR-NA Eaton Moeller series NZM - Molded Case Circuit Breaker. Door coupling rotary handle red-yellow, size 2, NA type
More info
▲General specifications
UL/CSA
RoHS conform
UL489
CSA (Class No. 1437-01)
CSA certified
UL (File No. E140305)
IEC60947
UL listed
CSA (File No. 22086)
UL (Category Control Number DIHS)
CSA-C22.2 No. 5-09
Product specifications
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
- Cannot be combined with mechanical interlock
- External warning plate/designation label can be clipped on.
- Door coupling rotary handle for operating the switch through a closed control panel door
Red-yellow for emergency switching off
Switch disconnector
Emergency stop
Door opens only with active rotation beyond the 0 position
Lockable on the handle on the switch using up to 3 padlocks
4X. 12
