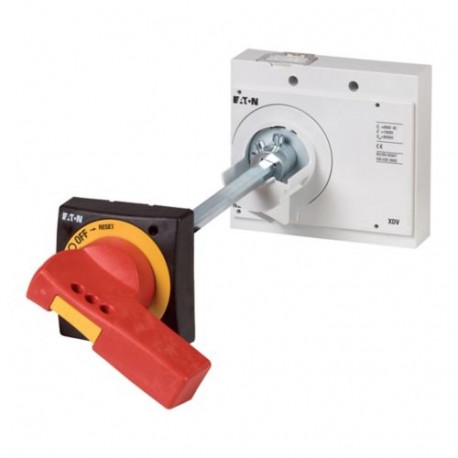

NZM3-XTVDVR-60 271514 Y7-271514 EATON ELECTRIC Door coupling rotary handle, red-yellow, max 60mm shaft, size..
NZM3-XTVDVR-60
271514
Y7-271514
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Door coupling rotary handle, red-yellow, max 60mm shaft, size.. is an exterior-mounted panel operator designed to drive internal circuit breakers securely through cabinet doors via an extension shaft. These door handles provide reliable mechanical feedback and padlock capabilities to safeguard maintenance personnel during equipment servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL489
UL (File No. E140305)
CE marking
UL listed
CSA (Class No. 1437-01)
CSA-C22.2 No. 5-09
UL (Category Control Number DIHS)
CSA certified
IEC60947
Product specifications
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
- For maximum shaft length 60 mm
- Without shaft support
- Cannot be combined with NZM...-XDZ additional handle
- External warning plate/designation label can be clipped on.
- Door coupling rotary handle for operating the switch through a closed control panel door
Lockable
Switch disconnector
Emergency stop
Door can be opened in OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock not defeated in the locked OFF position.
Lockable on the handle on the switch using up to 3 padlocks
4X. 12
