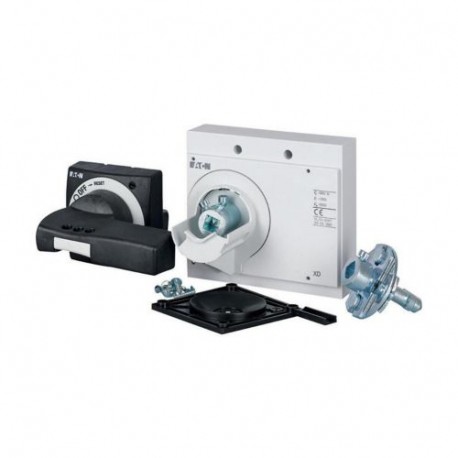

NZM3-XTVD 260170 Y7-260170 EATON ELECTRIC Door coupling rotary handle, lockable, size 3
NZM3-XTVD
260170
Y7-260170
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Functioning as an external operator interface, the NZM3-XTVD 260170 Y7-260170 EATON ELECTRIC Door coupling rotary handle, lockable, size 3 bridges enclosure doors to internal circuit breakers for safe external switching. Door coupling handles allow maintenance personnel to manipulate main power disconnects without opening protective electrical cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
CSA-C22.2 No. 5-09
CSA (Class No. 1437-01)
CE marking
UL listed
IEC60947
UL (File No. E140305)
CSA (File No. 22086)
CSA certified
UL489
Product specifications
- Door coupling rotary handle for operating the switch through a closed control panel door
- External warning plate/designation label can be clipped on.
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
Standard: black / gray
Power circuit breaker
Door interlock not defeated in the locked OFF and ON positions
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock can be modified in the unlocked ON position
With door interlock
4X. 12
