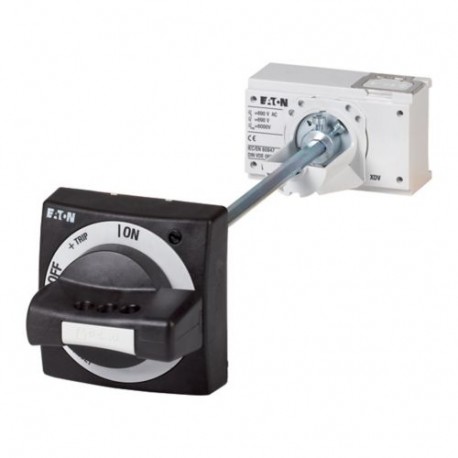

NZM2-XTVD 260168 Y7-260168 EATON ELECTRIC Door coupling rotary handle, lockable, size 2
NZM2-XTVD
260168
Y7-260168
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller NZM2-XTVD is a door coupling rotary handle designed to operate industrial circuit breakers and disconnectors securely from outside an enclosure. This mechanical accessory allows operators to control internal switching devices while keeping cabinet doors safely closed and locked. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CE marking
CSA-C22.2 No. 5-09
CSA (File No. 22086)
UL (Category Control Number DIHS)
IEC60947
CSA certified
CSA (Class No. 1437-01)
UL (File No. E140305)
UL listed
Product specifications
- Door coupling rotary handle for operating the switch through a closed control panel door
- External warning plate/designation label can be clipped on.
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
Lockable
Power circuit breaker
Door interlock not defeated in the locked OFF and ON positions
Door interlock can be modified in the unlocked ON position
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
With door interlock
4X. 12
