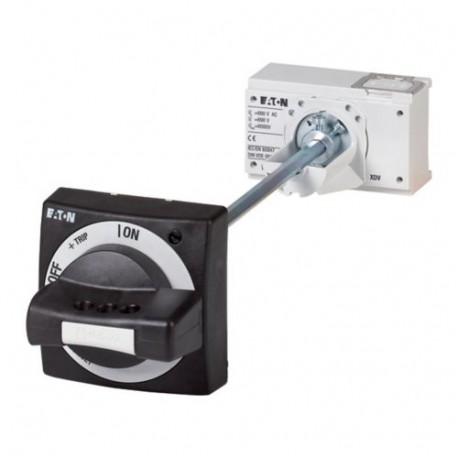

NZM1-XTVD 260166 Y7-260166 EATON ELECTRIC Door coupling rotary handle, lockable, size 1
NZM1-XTVD
260166
Y7-260166
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NZM1-XTVD door coupling rotary handle functions as an external operator interface for industrial circuit protection devices, allowing operators to safely control internal breakers from outside enclosures.
These mechanisms are routinely installed on control panels and electrical distribution switchboards to maintain enclosure integrity while providing manual switching and padlocking capabilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
CE marking
UL (Category Control Number DIHS)
IEC60947
CSA certified
CSA (File No. 22086)
CSA-C22.2 No. 5-09
UL (File No. E140305)
CSA (Class No. 1437-01)
UL listed
Product specifications
- Door coupling rotary handle for operating the switch through a closed control panel door
- External warning plate/designation label can be clipped on.
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
Lockable
Power circuit breaker
Door interlock not defeated in the locked OFF and ON positions
Door can be opened in OFF
Door interlock can be modified in the unlocked ON position
With door interlock
4X. 12
