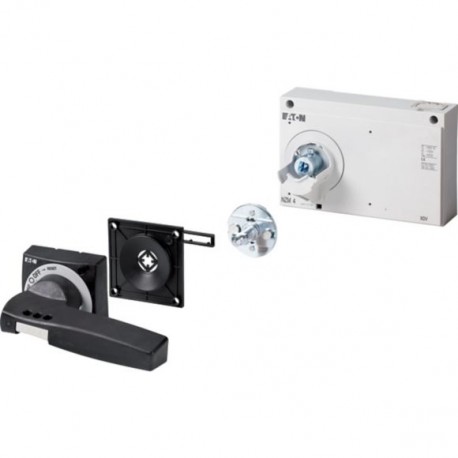

NZM4-XTVDV 266616 Y7-266616 EATON ELECTRIC Door coupling rotary handle, lockable on the handle+switch
NZM4-XTVDV
266616
Y7-266616
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NZM4-XTVDV door coupling rotary handle, lockable on the handle+switch provides external panel operation for high-capacity industrial circuit breakers. Door coupling mechanisms ensure precise alignment and secure interlocking between the enclosure door and the internal switching apparatus.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CSA (File No. 22086)
CE marking
UL (File No. E140305)
CSA-C22.2 No. 5-09
UL (Category Control Number DIHS)
UL listed
CSA certified
CSA (Class No. 1437-01)
IEC60947
Product specifications
Standard: black / gray
Power circuit breaker
Door can be opened in OFF
Door interlock not defeated in the locked OFF and ON positions
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Lockable on the handle on the switch using up to 3 padlocks
With door interlock
4X. 12
