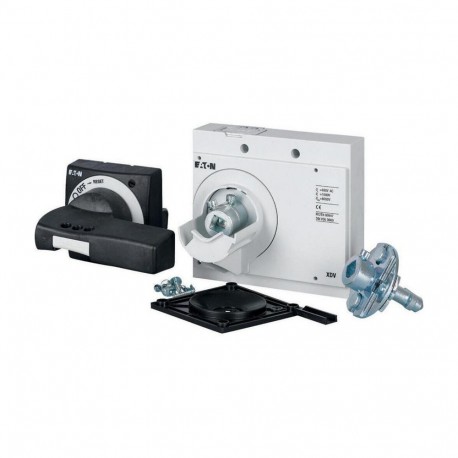

NZM3-XTVDV 260176 Y7-260176 EATON ELECTRIC Door coupling rotary handle, lockable on the handle, size 3
NZM3-XTVDV
260176
Y7-260176
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Door coupling rotary handle engineered for external operation of industrial disconnectors and circuit breakers mounted inside heavy-duty enclosures. This mechanism allows operators to switch high-voltage equipment while maintaining panel sealing and physical safety constraints. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL listed
CSA certified
CSA (File No. 22086)
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)
UL489
UL (File No. E140305)
CE marking
CSA-C22.2 No. 5-09
Product specifications
Lockable
Power circuit breaker
Door interlock can be modified in the unlocked ON position
Door can be opened in OFF
Door interlock not defeated in the locked OFF and ON positions
With door interlock
Lockable on the handle on the switch using up to 3 padlocks
4X. 12
