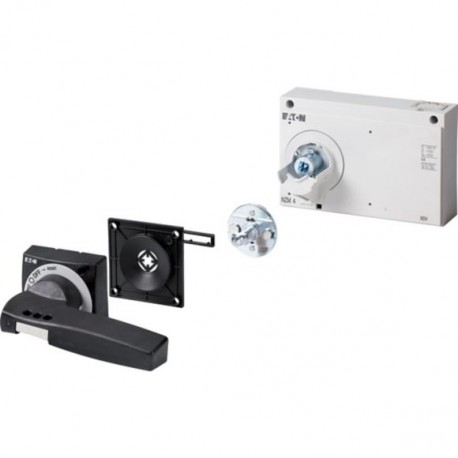

NZM4-XTVD 266614 Y7-266614 EATON ELECTRIC Door coupling rotary handle, lockable
NZM4-XTVD
266614
Y7-266614
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller door coupling rotary handle, lockable provides an external operator interface for control cabinet doors, allowing technicians to actuate internal circuit breakers or disconnectors safely. This mechanism ensures that panel doors remain safely interlocked while equipment is energized. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL489
UL listed
CE marking
IEC60947
UL (File No. E140305)
CSA (File No. 22086)
UL (Category Control Number DIHS)
CSA certified
CSA-C22.2 No. 5-09
Product specifications
- Door coupling rotary handle for operating the switch through a closed control panel door
- External warning plate/designation label can be clipped on.
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
Standard: black / gray
Switch disconnector
Door interlock not defeated in the locked OFF and ON positions
Door can be opened in OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
With door interlock
4X. 12
