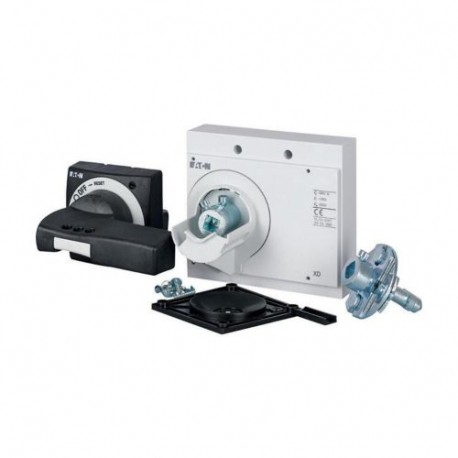

NZM3-XTVD-NA 271447 Y7-271447 EATON ELECTRIC Door coupling rotary handle, black, lockable, size 3, NA type
NZM3-XTVD-NA
271447
Y7-271447
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A door coupling rotary handle is utilized in electrical distribution panels to allow operators to safely manipulate breakers and disconnects from outside a closed enclosure door. The Eaton Moeller NZM3-XTVD-NA incorporates padlock locking capabilities and works with standard size 3 industrial systems. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL489
UL (Category Control Number DIHS)
CSA-C22.2 No. 5-09
CSA (File No. 22086)
UL (File No. E140305)
CE marking
CSA (Class No. 1437-01)
UL listed
CSA certified
Product specifications
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
- Cannot be combined with mechanical interlock
- External warning plate/designation label can be clipped on.
- Door coupling rotary handle for operating the switch through a closed control panel door
Standard: black / gray
Power circuit breaker
Door interlock not defeated in the locked OFF position.
With door interlock
4X. 12
