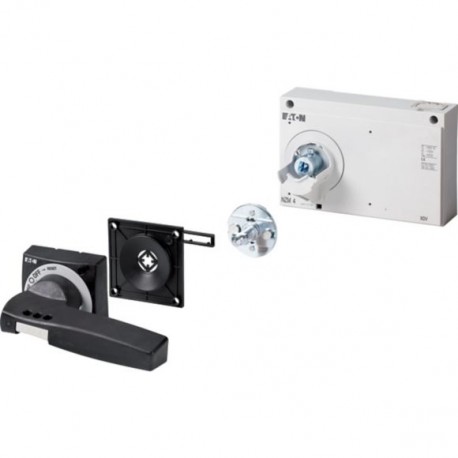

NZM4-XTVDV-60 271511 Y7-271511 EATON ELECTRIC Door coupling rotary handle, black, lockable on the handle+swi..
NZM4-XTVDV-60
271511
Y7-271511
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The NZM4-XTVDV-60 271511 Y7-271511 EATON ELECTRIC Door coupling rotary handle, black, lockable on the handle+swi.. is an operator mechanism that bridges enclosure doors to internal switching devices. Door coupling handles allow technicians to safely disconnect power while preventing enclosure access when the switch is in the closed position.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL489
UL (Category Control Number DIHS)
CE marking
UL listed
CSA (File No. 22086)
IEC60947
CSA-C22.2 No. 5-09
CSA certified
UL (File No. E140305)
Product specifications
Standard: black / gray
Power circuit breaker
Door interlock can be modified in the unlocked ON position
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock not defeated in the locked OFF and ON positions
Lockable on the handle on the switch using up to 3 padlocks
Modifiable on handle in I position as well
4X. 12
