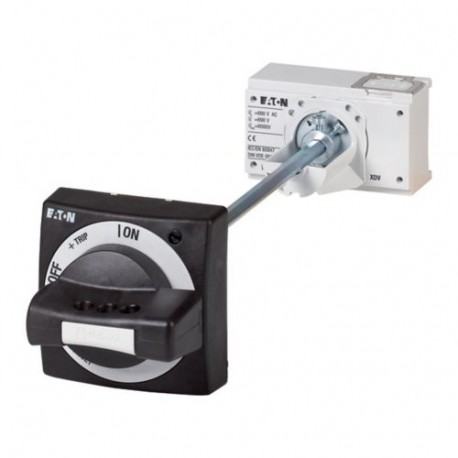

NZM2-XTVDV-60 271509 Y7-271509 EATON ELECTRIC Door coupling rotary handle, black, lockable on the handle+swi..
NZM2-XTVDV-60
271509
Y7-271509
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZM2-XTVDV-60 door coupling rotary handle is a robust mechanical operator designed to link internal circuit breakers directly to enclosure doors for exterior control.
These mechanisms allow technicians to safely actuate and lock out main breakers from outside protective cabinets, maintaining necessary safety barriers in electrical rooms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CSA certified
UL (File No. E140305)
CSA (File No. 22086)
UL489
UL listed
CSA-C22.2 No. 5-09
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)
IEC60947
Product specifications
- Complete including rotary drive and coupling parts
- Extension shaft additionally required.
- For maximum shaft length 60 mm
- Without shaft support
- Cannot be combined with NZM...-XDZ additional handle
- External warning plate/designation label can be clipped on.
- Door coupling rotary handle for operating the switch through a closed control panel door
Standard: black / gray
Switch disconnector
Door interlock not defeated in the locked OFF and ON positions
Door can be opened in OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
With door interlock
Modifiable on handle in I position as well
4X. 12
