View larger
Images are for illustrative purposes only. Please refer to data sheet for details

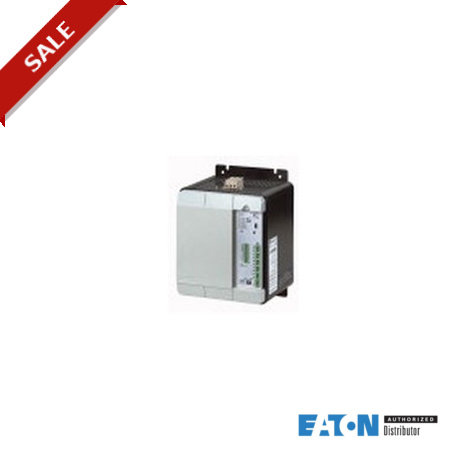

DM4-340-22K 207900 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices Low Voltage ..
DM4-340-22K
207900
EATON - MOELLER
1 Pcs.
Industrial Automation Bussines and Industrial Control Devices Low Voltage VFD
Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 230 - 480 V AC, Supply voltage: Us= 110/230 V AC, Control voltage: UC= 24 - 230 V AC, 24-230 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 22 kW, at 460 V, 60 Hz: P= 30 HP, Rated operational current AC-53: Ie= 44 A, Rated operational current AC-53, In-Delta: Ie= 76 A, Startup class: CLASS 10 (star-delta replacement), CLASS 20 (heavy starting duty 3 x Ie for 45 s), Rated operational voltage: Ue= 230 V, 400 V, 480 V, Standards: IEC/EN 60947-4-2, UL 508
Automation > Soft starter
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Internal bypass (EF009214) | No |
| With display (EF000458) | No |
| Torque control (EF009215) | No |
| Integrated motor overload protection (EF007297) | No |
