View larger
Images are for illustrative purposes only. Please refer to data sheet for details

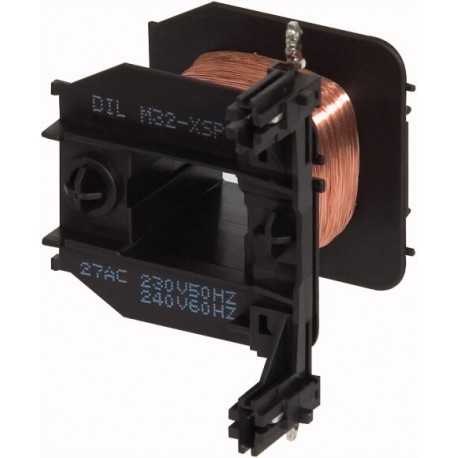

DILM32-XSP(TVC100) 281151 XTCERENCOILCE6 EATON ELECTRIC Replacement coil, Tool-less plug connection, DILM32-..
DILM32-XSP(TVC100)
281151
XTCERENCOILCE6
EATON - MOELLER
1 Pcs.
Replacement coil, Tool-less plug connection, DILM32-XSP(TVC100), AC, For use with: DILM17, DILM25, DILM32, DILM38
Coil replacement; For contactors DILM17...38; TVC100
Replacement coil, Connection technique: Tool-less plug connection, Actuating voltage: DILM32-XSP(TVC100), Voltage AC/DC: AC, For use with: DILM17, DILM25, DILM32, DILM38
Automation > Coil for relay
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Replacement coil, Tool-less plug connection, DILM32-XSP(TVC100), AC, For use with: DILM17, DILM25, DILM32, DILM38
Replacement coil, Connection technique: Tool-less plug connection, Actuating voltage: DILM32-XSP(TVC100), Voltage AC/DC: AC, For use with: DILM17, DILM25, DILM32, DILM38
Delivery program
Connection technique
Tool-less plug connection
Actuating voltage
DILM32-XSP(TVC100)
Voltage AC/DC
AC
For use with
DILM17
DILM25
DILM32
DILM38
DILM25
DILM32
DILM38
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Coil for relay (EC001043)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Contactor (LV) / Reel for contactor ([email protected] [AKF021013])
Rated control supply voltage Us at AC 50HZ
100 - 100 V
Rated control supply voltage Us at AC 60HZ
100 - 110 V
Rated control supply voltage Us at DC
0 - 0 V
Voltage type for actuating
AC
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Rated control supply voltage DC (EF003980) | 0 V |
| Voltage type for actuating (EF008242) | AC |
