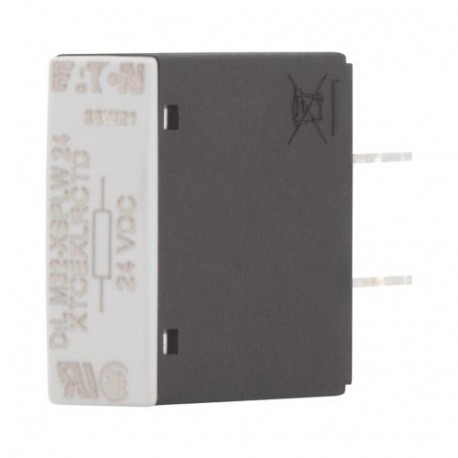

DILM32-XSPLW24 112419 Y7-112419 EATON ELECTRIC Load resistor
DILM32-XSPLW24
112419
Y7-112419
EATON - MOELLER
1 Pcs.
Load resistor
DILM32-XSPLW24
Load resistor, Product range: Accessories, Description: For DC contactors in order to increase power consumption, Installed in a suppressor circuit enclosure., Required when using special PLC outputs for actuation, e.g.: Beckhoff safety controllers., For use with: DILM17, DILM25, DILM32, DILM38, DILMP32, DILMP45
Automation > Accessories/spare parts for low-voltage switch technology
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series DILM load resistor
Catalog Number
112419
Model Code
DILM32-XSPLW24
EAN
4015081119769
Product Length/Depth
43 mm
Product Height
25 mm
Product Width
9 mm
Product Weight
0.004 kg
Certifications
CSA File No.: 225135
UL 508
CSA
UL Category Control No.: NKCR2, NKCR8
UL File No.: E29184
CE
CSA Class No.: 3211-07
IEC/EN 60947-4-1
UL
CSA-C22.2 No. 14-05
UL 508
CSA
UL Category Control No.: NKCR2, NKCR8
UL File No.: E29184
CE
CSA Class No.: 3211-07
IEC/EN 60947-4-1
UL
CSA-C22.2 No. 14-05
General
Accessory/spare part type
Other
Product category
Accessories
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Design verification
Equipment heat dissipation, current-dependent Pvid
0.3 W
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
0.01 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
