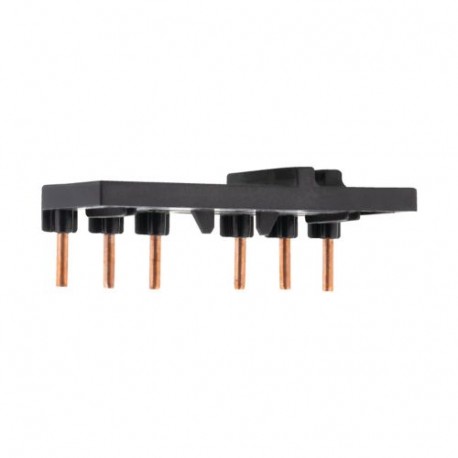

DILM32-XP2 239371 Y7-239371 EATON ELECTRIC Parallel connection For DILM17...32
DILM32-XP2
239371
Y7-239371
EATON - MOELLER
20 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A connecting bridge like the Eaton Moeller DILM32-XP2 enables parallel connection configurations between modular contactor units. Such accessories link adjacent power poles to increase current-carrying capacity in motor control and power switching panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of accessory/spare part (EF000215): Connecting bridge
- Accessory (EF013236): Yes
- Spare part (EF013237): No
More info
▲General specifications
UL 508
CSA Class No.: 3211-04
UL
CSA
UL Category Control No.: NLRV
UL File No.: E36332
CE
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
General
Climatic environmental conditions
Short-circuit rating
5 kA, SCCR (UL/CSA)
125 A, max. Fuse, SCCR (UL/CSA)
50/32 A, max. CB, SCCR (UL/CSA)
125/70 A, Class J, max. Fuse, SCCR (UL/CSA)
10/65 kA, CB, SCCR (UL/CSA)
10/100 kA, Fuse, SCCR (UL/CSA)
125/125 A, Class J, max. Fuse, SCCR (UL/CSA)
10/22 kA, CB, SCCR (UL/CSA)
