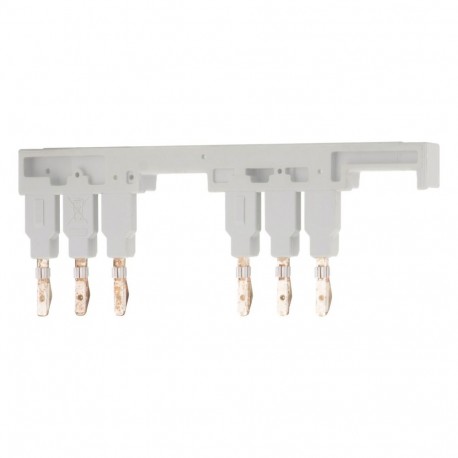

DILM12-XP2 239370 Y7-239370 EATON ELECTRIC Paralleling link, for DIL M7-M12
DILM12-XP2
239370
Y7-239370
EATON - MOELLER
1 Pcs.
Paralleling link, for DIL M7-M12
DILM12-XP2
Eaton Moeller® series DILM Paralleling link, for DIL M7-M12
Plug-in main current wiring bridge for quick, simple mounting
Automation > Accessories/spare parts for low-voltage switch technology
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series DILM paralleling link
Catalog Number
239370
Model Code
DILM12-XP2
EAN
4015082393700
Product Length/Depth
30 mm
Product Height
5.2 mm
Product Width
90 mm
Product Weight
0.01 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60947-4-1
CSA-C22.2 No. 14-05
CE
CSA
UL 508
UL Category Control No.: NLRV
CSA File No.: 012528
UL
UL File No.: E36332
IEC/EN 60947-4-1
CSA-C22.2 No. 14-05
CE
CSA
UL 508
UL Category Control No.: NLRV
CSA File No.: 012528
UL
UL File No.: E36332
General
Accessory/spare part type
Connecting bridge
Product category
Accessories
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Design verification
Equipment heat dissipation, current-dependent Pvid
2.1 W
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
22 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Connecting bridge |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
