View larger
Images are for illustrative purposes only. Please refer to data sheet for details

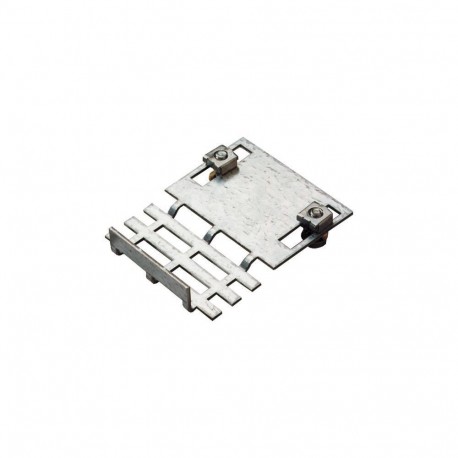

TIW-1 275430 Y7-275430 EATON ELECTRIC 275430 TIW-1
TIW-1
275430
Y7-275430
EATON - MOELLER
1 Pcs.
275430 TIW-1
TIW-1
Eaton xEnergy Basic LV systems Low voltage switchgear. Depth angle, 1
Adjustable depth angle bracket for mounting components with a greater depth on the BPZ-MSW.
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Basic installation component
Catalog Number
275430
Model Code
TIW-1
EAN
4015082754303
Product Length/Depth
75 mm
Product Height
15 mm
Product Width
95 mm
Product Weight
0.21 kg
Compliances
RoHS conform
Delivery program
Type
Additional equipment
Model
Corner set
Color
Other
Technical data - mechanical
Mounting method
Surface mounting
Floor standing distribution board
Flush mounting
Floor standing distribution board
Flush mounting
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Additional information
Functions
Additional equipment
RAL-number
0
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Corner set |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 95 mm |
| Height (EF000040) | 15 mm |
| Depth (EF000049) | 75 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
