View larger
Images are for illustrative purposes only. Please refer to data sheet for details

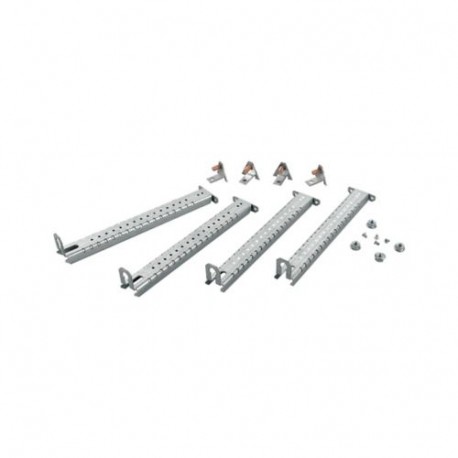

DAS-SET/250-CS 138658 Y7-138658 EATON ELECTRIC Depth adjustment, kit, for T 250mm
DAS-SET/250-CS
138658
Y7-138658
EATON - MOELLER
1 Pcs.
Depth adjustment, kit, for T=250mm
DAS-SET/250-CS
Eaton xEffect CS LV systems Switch- & Controlgear Enclosure. Depth adjustment, kit, for T=250mm
Depth adjustment element, depth-adjustable in 25mm grid, including fixing sundries, galvanized sheet steel, for 150 depth, 300mm, set contains 4 depth adjustment elements
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEffect CS depth adjustment set
Catalog Number
138658
Model Code
DAS-SET/250-CS
EAN
4015081354382
Product Length/Depth
25 mm
Product Height
25 mm
Product Width
25 mm
Product Weight
1.35 kg
Compliances
RoHS conform
Delivery program
Type
Model
Depth bracket
Accessory/spare part type
Depth adjustment elements
Color
Other
Technical data - mechanical
Surface finishing
Galvanized
Material
Steel plate
Metal
Metal
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Additional information
RAL-number
0
Special features
- Depth-adjustable in 25-mm-grid
- Including fixing sundries
Used with
Enclosure depth = 250 mm
Accessory interior fitting
Accessory CS
Accessory interior fitting
Accessory CS
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Depth bracket |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 25 mm |
| Height (EF000040) | 25 mm |
| Depth (EF000049) | 25 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
