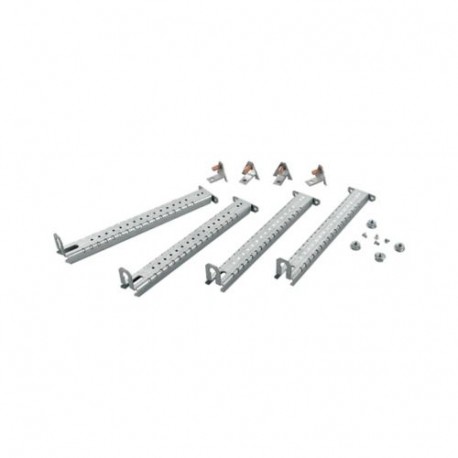

EATON - MOELLER DAS-SET/200-CS DAS-SET/200-CS 138657 Y7-138657 EATON ELECTRIC Depth adjustment, kit, for T 200mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DAS-SET/200-CS 138657 Y7-138657 EATON ELECTRIC Depth adjustment, kit, for T 200mm

DAS-SET/200-CS

138657

Y7-138657

EATON - MOELLER

1 Pcs.

Depth adjustment, kit, for T=200mm Depth adjustment set (depth.200) Depth adjustment element, depth-adjustable in 25mm grid, including fixing sundries, galvanized sheet steel, for 150 depth, 300mm, set contains 4 depth adjustment elements

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A depth adjustment kit modifies the internal mounting depth of equipment rails and chassis plates within industrial enclosures. This Eaton Moeller DAS-SET/200-CS bracket set allows installers to position internal components precisely relative to the front door.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Depth bracket
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 25 mm
  • Height (EF000040): 25 mm
  • Depth (EF000049): 25 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEffect CS depth adjustment set
Catalog Number
138657
Model Code
DAS-SET/200-CS
EAN
4015081354375
Product Length/Depth
25 mm
Product Height
25 mm
Product Width
25 mm
Product Weight
1.15 kg
Compliances
RoHS conform

Delivery program

Type
Model
Depth bracket
Accessory/spare part type
Depth adjustment elements
Color
Other

Technical data - mechanical

Surface finishing
Galvanized
Material
Metal
Steel plate
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

RAL-number
0
Special features
  • Depth-adjustable in 25-mm-grid
  • Including fixing sundries
Used with
Enclosure depth = 200 mm
Accessory interior fitting
Accessory CS
