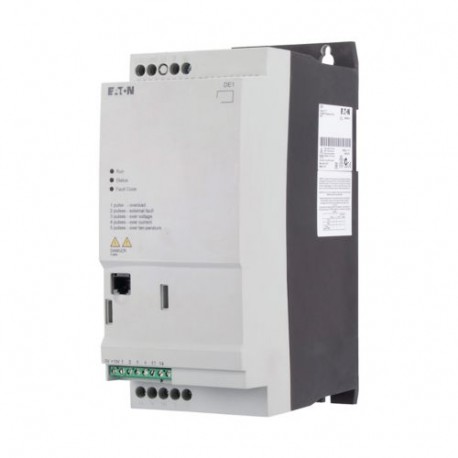

DE11-348D5NN-N20N 180675 Y7-180675 EATON ELECTRIC Variable speed starter, Rated operational voltage 400 V AC..
DE11-348D5NN-N20N
180675
Y7-180675
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for efficient motor management, the Eaton Moeller DE11-348D5NN-N20N variable speed starter supports standard industrial drives by offering reliable start control and operational speed adjustments. These units are commonly deployed in conveyor systems, pumps, and fans. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 8.5 A
- Power consumption (EF000346): 120 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CUL
IEC/EN 61800-3
RCM
Certified by UL for use in Canada
UL File No.: E172143
Specification for general requirements: IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS7
UL 508C
UL report applies to both US and Canada
CSA-C22.2 No. 14
IEC/EN61800-3
RoHS, ISO 9001
IEC/EN61800-5
Safety requirements: IEC/EN 61800-5-1
UL
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
CANopen®, built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
MODBUS
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Main circuit
< 10 mA (DC-operated)
U/f control
400 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
