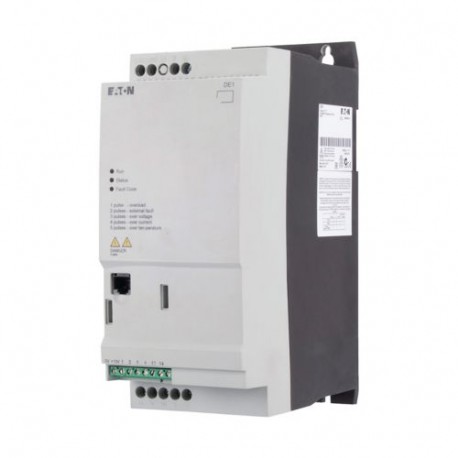

DE11-348D5FN-N20N 180667 Y7-180667 EATON ELECTRIC Variable speed starters, Rated operational voltage 400 V A..
DE11-348D5FN-N20N
180667
Y7-180667
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number DE11-348D5FN-N20N is a variable speed starter built to provide straightforward motor control and protection in standard industrial architectures. Variable speed starters are typically selected for simpler conveyor and pump applications where basic speed modulation is required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DE11-348D5FN-N20N
- Catalogue code: 180667
More info
▲General specifications
IEC/EN61800-5
UL
RoHS, ISO 9001
Specification for general requirements: IEC/EN 61800-2
UL 508C
UL report applies to both US and Canada
Certified by UL for use in Canada
CSA-C22.2 No. 14
IEC/EN 61800-3
UL Category Control No.: NMMS, NMMS7
CE
CUL
Safety requirements: IEC/EN 61800-5-1
RCM
UL File No.: E172143
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
OP-Bus (RS485), built in
Yes
NEMA Other
EtherNet/IP
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
Speed control with slip compensation
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
