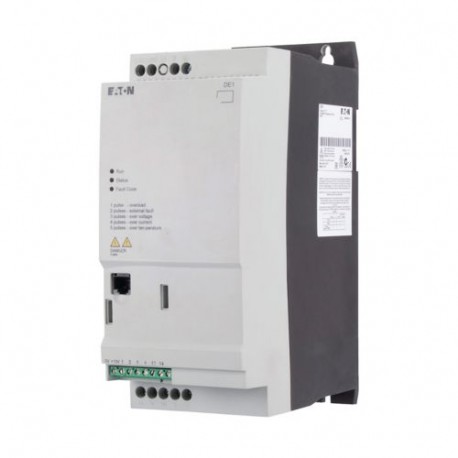

DE11-345D0NN-N20N 180673 Y7-180673 EATON ELECTRIC Variable speed starter, Rated operational voltage 400 V AC..
DE11-345D0NN-N20N
180673
Y7-180673
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller DE11-345D0NN-N20N variable speed starter provides dependable motor control and straightforward speed adjustments for three-phase equipment. Speed starters bridge the gap between traditional motor starters and advanced frequency inverters in streamlined machine designs.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 5 A
- Power consumption (EF000346): 65 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
Safety requirements: IEC/EN 61800-5-1
UL File No.: E172143
UL Category Control No.: NMMS, NMMS7
IEC/EN 61800-3
RoHS, ISO 9001
RCM
Specification for general requirements: IEC/EN 61800-2
UL report applies to both US and Canada
UL 508C
Certified by UL for use in Canada
CUL
IEC/EN61800-3
UL
CSA-C22.2 No. 14
IEC/EN61800-5
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
OP-Bus (RS485), built in
CANopen®, built in
Yes
NEMA Other
EtherNet/IP
MODBUS
CAN
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
U/f control
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
