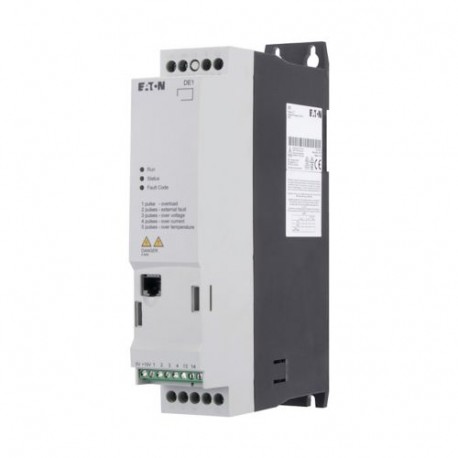

DE11-343D6NN-N20N 180672 Y7-180672 EATON ELECTRIC Variable speed starter, Rated operational voltage 400 V AC..
DE11-343D6NN-N20N
180672
Y7-180672
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a reliable variable speed starter, the Eaton Moeller DE11-343D6NN-N20N precisely modulates motor velocities in various mechanical drive assemblies. Such devices are commonly integrated into conveyor systems, pumps, and fans to match operational output with immediate process demands. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 3.6 A
- Power consumption (EF000346): 47 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CUL
RoHS, ISO 9001
CE
CSA-C22.2 No. 14
Certified by UL for use in Canada
IEC/EN61800-3
UL File No.: E172143
IEC/EN61800-5
UL 508C
UL report applies to both US and Canada
RCM
UL
UL Category Control No.: NMMS, NMMS7
IEC/EN 61800-3
Specification for general requirements: IEC/EN 61800-2
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
CANopen®, built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
EtherNet/IP
Other bus systems
CAN
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
Speed control with slip compensation
400 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
