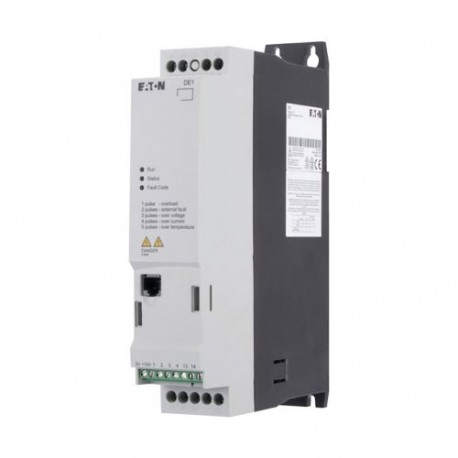

DE11-343D6FN-N20N 180664 Y7-180664 EATON ELECTRIC Variable speed starters, Rated operational voltage 400 V A..
DE11-343D6FN-N20N
180664
Y7-180664
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DE11-343D6FN-N20N is a variable speed starter intended for streamlined motor control in standard industrial and commercial installations. These units provide dependable basic speed adjustment and soft-starting capabilities, protecting mechanical components from sudden surge currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 3.6 A
- Power consumption (EF000346): 47 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL File No.: E172143
UL Category Control No.: NMMS, NMMS7
Certified by UL for use in Canada
CUL
CSA-C22.2 No. 14
RCM
IEC/EN61800-5
IEC/EN 61800-3
UL 508C
Specification for general requirements: IEC/EN 61800-2
IEC/EN61800-3
RoHS, ISO 9001
CE
UL report applies to both US and Canada
UL
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
PC connection
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
CANopen®, built in
OP-Bus (RS485), built in
Yes
NEMA Other
MODBUS
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
U/f control
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
