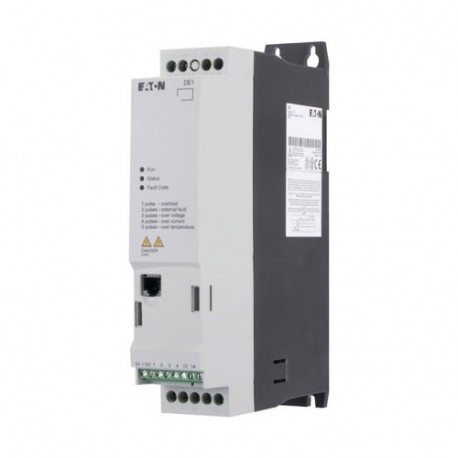

DE11-342D1NN-N20N 180671 Y7-180671 EATON ELECTRIC Variable speed starter, Rated operational voltage 400 V AC..
DE11-342D1NN-N20N
180671
Y7-180671
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A variable speed starter from Eaton Moeller provides streamlined motor starting functionality combined with basic frequency conversion for industrial applications. These devices are commonly installed to reduce mechanical wear on belts, gears, and driven machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 2.1 A
- Power consumption (EF000346): 28 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL
Safety requirements: IEC/EN 61800-5-1
CUL
Certified by UL for use in Canada
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
Specification for general requirements: IEC/EN 61800-2
UL File No.: E172143
RCM
CSA-C22.2 No. 14
IEC/EN 61800-3
RoHS, ISO 9001
CE
UL report applies to both US and Canada
IEC/EN61800-3
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
OP-Bus (RS485), built in
CANopen®, built in
Yes
NEMA Other
MODBUS
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
U/f control
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
