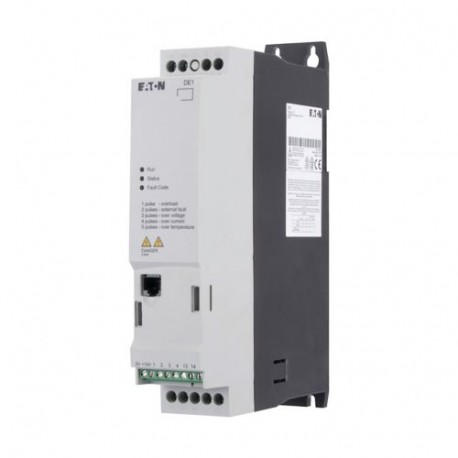

DE11-342D1FN-N20N 180663 Y7-180663 EATON ELECTRIC Variable speed starters, Rated operational voltage 400 V A..
DE11-342D1FN-N20N
180663
Y7-180663
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DE11-342D1FN-N20N functions as a variable speed starter built to control motor speed and starting characteristics in industrial machinery applications. Variable speed starters provide a streamlined alternative for basic automation tasks where straightforward motor acceleration is required.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 2.1 A
- Power consumption (EF000346): 28 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CSA-C22.2 No. 14
UL Category Control No.: NMMS, NMMS7
UL File No.: E172143
IEC/EN 61800-3
UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN61800-3
UL
UL 508C
CE
RCM
Specification for general requirements: IEC/EN 61800-2
IEC/EN61800-5
Safety requirements: IEC/EN 61800-5-1
RoHS, ISO 9001
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
PC connection
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
CANopen®, built in
OP-Bus (RS485), built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
EtherNet/IP
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
Speed control with slip compensation
400 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Adjustable to 100 %, DC - Main circuit
