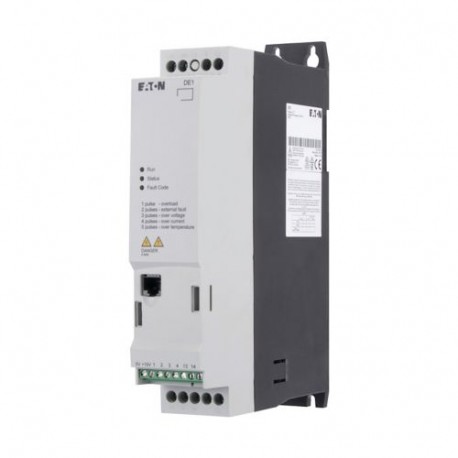

DE11-341D3NN-N20N 180670 Y7-180670 EATON ELECTRIC Variable speed starter, Rated operational voltage 400 V AC..
DE11-341D3NN-N20N
180670
Y7-180670
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller variable speed starter, part number DE11-341D3NN-N20N, dynamically manages asynchronous motor speeds to optimize industrial processes. Devices of this type are regularly integrated into machine tools, automated material handling setups, and light industrial production lines for reliable motion control.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 1.3 A
- Power consumption (EF000346): 18 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL 508C
Specification for general requirements: IEC/EN 61800-2
CSA-C22.2 No. 14
IEC/EN61800-3
RCM
RoHS, ISO 9001
UL Category Control No.: NMMS, NMMS7
UL
CE
Safety requirements: IEC/EN 61800-5-1
IEC/EN 61800-3
UL report applies to both US and Canada
IEC/EN61800-5
UL File No.: E172143
CUL
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
OP-Bus (RS485), built in
Yes
NEMA Other
MODBUS
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Main circuit
< 3.5 mA (AC-operated)
Speed control with slip compensation
400 V AC, 3-phase
400 V AC, 3-phase
Motor rating
Apparent power
Braking function
Adjustable to 100 %, DC - Main circuit
