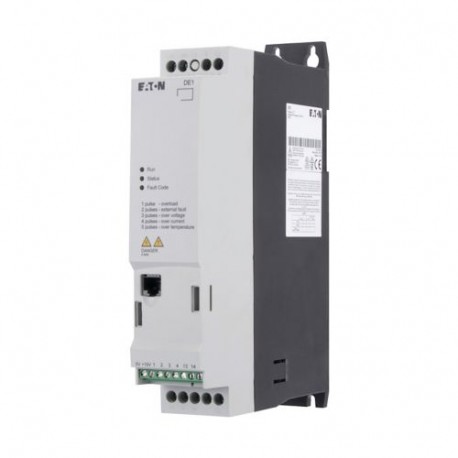

DE11-341D3FN-N20N 180662 Y7-180662 EATON ELECTRIC Variable speed starters, Rated operational voltage 400 V A..
DE11-341D3FN-N20N
180662
Y7-180662
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Run compact three-phase motors efficiently with the Eaton Moeller DE11-341D3FN-N20N variable speed starter, built for reliable machine integration. Speed starters offer an economical alternative to full-featured inverters while providing essential frequency control for pumps, fans, and simple conveyors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DE11-341D3FN-N20N
- Catalogue code: 180662
- Catalogue title: DE11-341D3FN-N20N 180662 Y7-180662 EATON ELECTRIC Variable speed starters, Rated operational voltage 400 V A..
- Product description: General specifications Product Name Eaton DE11 Variable speed starter Catalog Number 180662 Model Code DE11-341D3FN-N20N EAN 4015081758272 Product Length/Depth 169 mm Product Height 230 mm Product Width 45 mm Product Wei
- Manufacturer summary: Variable speed starters, Rated operational voltage 400 V AC, 3-phase, Ie 1.3 A, 0.37 kW, 0.5 HP, Radio interference suppression filter DE11-341D3FN-N20N
More info
▲General specifications
CE
Certified by UL for use in Canada
CUL
Specification for general requirements: IEC/EN 61800-2
IEC/EN 61800-3
IEC/EN61800-3
UL report applies to both US and Canada
UL File No.: E172143
RCM
Safety requirements: IEC/EN 61800-5-1
UL Category Control No.: NMMS, NMMS7
UL 508C
CSA-C22.2 No. 14
RoHS, ISO 9001
IEC/EN61800-5
Global
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
Features & Functions
C2 ≤ 10 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
OP-Bus (RS485), built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
MODBUS
EtherNet/IP
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
General
Above 1000 m with 1 % derating per 100 m
Climatic environmental conditions
< 3.5 mA (AC-operated)
Speed control with slip compensation
480 V AC, 3-phase
400 V AC, 3-phase
Main circuit
Motor rating
Apparent power
Max. 30 % MN, Standard - Main circuit
