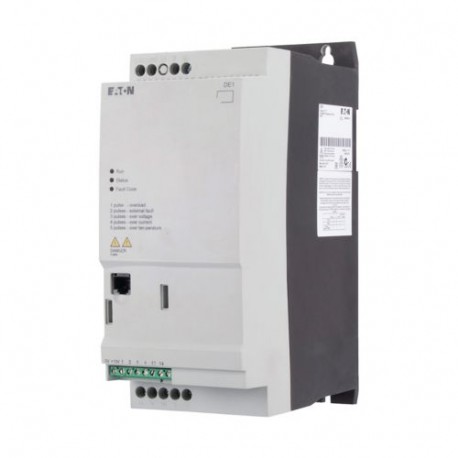

DE11-34016FN-N20N 180669 Y7-180669 EATON ELECTRIC Variable speed starters, Rated operational voltage 400 V A..
DE11-34016FN-N20N
180669
Y7-180669
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DE11-34016FN-N20N is a robust variable speed starter engineered to regulate motor start cycles and continuous running speeds in factory automation. These electronic control components bridge the gap between simple contactors and complex inverters, providing reliable operational control. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 16 A
- Power consumption (EF000346): 240 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
Certified by UL for use in Canada
CSA-C22.2 No. 14
UL File No.: E172143
IEC/EN61800-5
RCM
IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
Specification for general requirements: IEC/EN 61800-2
UL report applies to both US and Canada
CUL
UL 508C
UL Category Control No.: NMMS, NMMS7
RoHS, ISO 9001
UL
IEC/EN61800-3
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
PC connection
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
OP-Bus (RS485), built in
Yes
NEMA Other
Other bus systems
EtherNet/IP
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 3.5 mA (AC-operated)
Speed control with slip compensation
480 V AC, 3-phase
400 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
