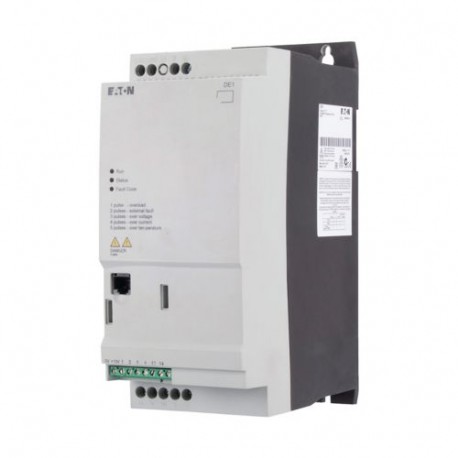

DE11-34011NN-N20N 180676 Y7-180676 EATON ELECTRIC Variable speed starter, Rated operational voltage 400 V AC..
DE11-34011NN-N20N
180676
Y7-180676
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DE11-34011NN-N20N is a variable speed starter designed to regulate the operational speed of industrial motors without complex parameterization. Speed starters bridge the gap between traditional contactors and full inverters, offering efficient baseline speed control for pumps, fans, and conveyors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 11.3 A
- Power consumption (EF000346): 159 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): false
- Application in industrial area permitted (EF007294): true
More info
▲General specifications
Certified by UL for use in Canada
IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
UL File No.: E172143
RCM
CSA-C22.2 No. 14
RoHS, ISO 9001
UL
CE
CUL
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
UL 508C
IEC/EN61800-3
Specification for general requirements: IEC/EN 61800-2
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
CANopen®, built in
OP-Bus (RS485), built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
EtherNet/IP
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 3.5 mA (AC-operated)
U/f control
480 V AC, 3-phase
400 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
