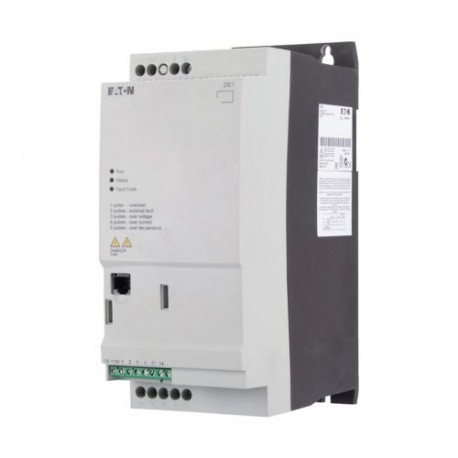

DE11-129D6NN-N20N 180661 Y7-180661 EATON ELECTRIC Variable speed starter, Rated operational voltage 230 V AC..
DE11-129D6NN-N20N
180661
Y7-180661
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DE11-129D6NN-N20N is a variable speed starter designed to control motor speeds and optimize operational efficiency in industrial drive configurations. Frequency converters like this one dynamically adjust voltage and frequency supplied to electric motors, enabling precise process control and energy savings across diverse machinery applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 9.6 A
- Power consumption (EF000346): 105 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN 61800-3
Certified by UL for use in Canada
RoHS, ISO 9001
UL
CE
CSA-C22.2 No. 14
UL 508C
IEC/EN61800-3
IEC/EN61800-5
Safety requirements: IEC/EN 61800-5-1
RCM
UL report applies to both US and Canada
CUL
UL File No.: E172143
Specification for general requirements: IEC/EN 61800-2
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
CANopen®, built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
EtherNet/IP
MODBUS
CAN
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
Speed control with slip compensation
230 V AC, 3-phase
240 V AC, 1-phase
Motor rating
Apparent power
Braking function
Adjustable to 100 %, DC - Main circuit
