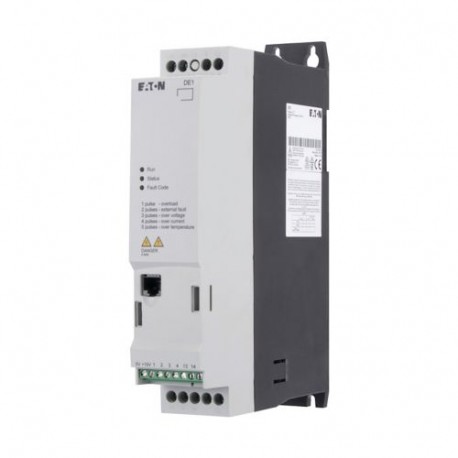

DE11-124D3NN-N20N 180659 Y7-180659 EATON ELECTRIC Variable speed starter, Rated operational voltage 230 V AC..
DE11-124D3NN-N20N
180659
Y7-180659
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A compact Eaton Moeller DE11-124D3NN-N20N variable speed starter manages motor acceleration and deceleration profiles in commercial and light industrial machinery. Such components bridge the gap between basic contactors and full inverters, offering streamlined operation for continuous processes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 4.3 A
- Power consumption (EF000346): 32 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL
IEC/EN 61800-3
IEC/EN61800-3
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
Specification for general requirements: IEC/EN 61800-2
UL report applies to both US and Canada
UL 508C
RoHS, ISO 9001
Safety requirements: IEC/EN 61800-5-1
Certified by UL for use in Canada
UL File No.: E172143
CSA-C22.2 No. 14
CE
RCM
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
OP-Bus (RS485), built in
CANopen®, built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
EtherNet/IP
Other bus systems
CAN
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Main circuit
< 10 mA (DC-operated)
Speed control with slip compensation
230 V AC, 3-phase
230 V AC, 1-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
