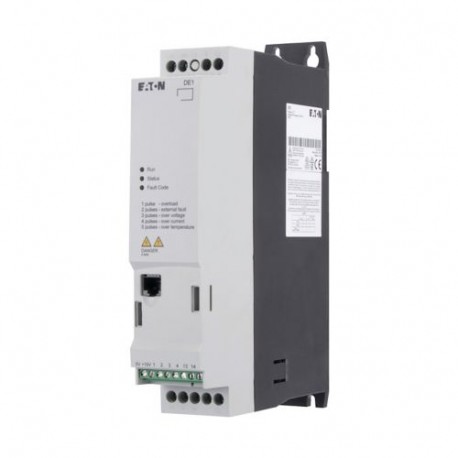

DE11-124D3FN-N20N 180653 Y7-180653 EATON ELECTRIC Variable speed starters, Rated operational voltage 230 V A..
DE11-124D3FN-N20N
180653
Y7-180653
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for streamlined motor management, the Eaton Moeller DE11-124D3FN-N20N variable speed starter optimizes operational efficiency in automated workflows. These compact starters bridge standard contactors and full frequency converters, offering straightforward speed adjustment for standard AC motors without complex programming.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 4.3 A
- Power consumption (EF000346): 32 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CSA-C22.2 No. 14
Safety requirements: IEC/EN 61800-5-1
IEC/EN61800-3
CE
UL 508C
Specification for general requirements: IEC/EN 61800-2
IEC/EN 61800-3
UL
UL Category Control No.: NMMS, NMMS7
UL File No.: E172143
UL report applies to both US and Canada
Certified by UL for use in Canada
CUL
RCM
RoHS, ISO 9001
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
C2 ≤ 10 m, Radio interference level, maximum motor cable length
Modbus RTU, built in
OP-Bus (RS485), built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
MODBUS
Other bus systems
CAN
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 3.5 mA (AC-operated)
Speed control with slip compensation
240 V AC, 3-phase
240 V AC, 1-phase
Motor rating
Apparent power
Braking function
Adjustable to 100 %, DC - Main circuit
